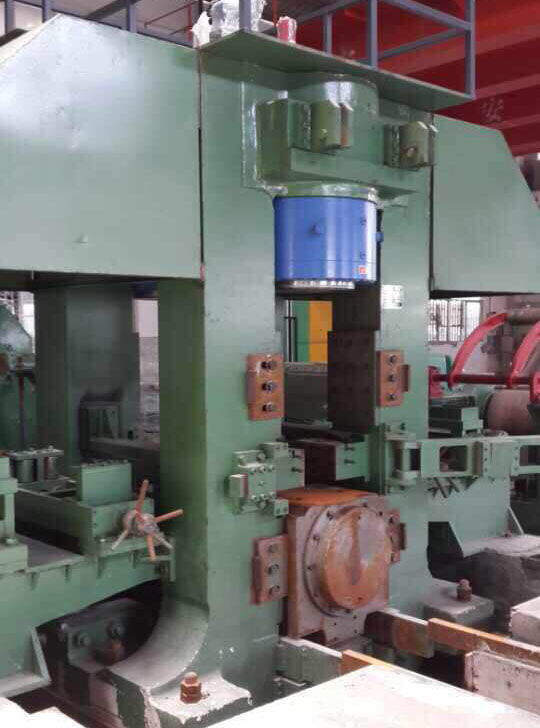

φ150/φ600X650四辊AGC可逆冷轧机
φ150/φ600x650四辊AGC可逆冷轧机（普碳钢）
ф150/ф600×650 four roll AGC reversing cold mill(plain carbon steel)
一用途
ONE.use
本机型为支承辊传动，机架刚度大，辊系采用轧机专用FCD轴承，适用于宽板粗轧及精轧，是轧制普碳钢的常用设备。
The machine is a supposing rod transmisiion, Rack stiffness,FCD bearing special for rolling mill, Suitable for Wide Plate Roughing and finishing mill,
it is a common device for rolling plain carbon steel.
二设备组成及结构特点
TWO. Equipment composition and structure characteristics
本机为四辊冷轧机，由压下装置、机架装置、辊系部分、平衡装置、主传动、万向轴托架、换辊装置等组成。其主要功能是轧制带材，满足一定厚度。设备组成，由液压涨缩放卷机、进料工艺平台、四辊轧机、支承辊液压换辊装置、出料工艺平台、液压四棱锥卷取机、普通液压系统、AGC液压系统、稀油站、油气润滑系统、工艺润滑站、电控、测厚仪、机组地脚螺栓等组成。
This machine is four roller cold rolling mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive, Universal shaft bracket and a roll changing device.
Its main function is to roll strip, to meet certain thickness. Device composition,by hydraulic up scaling machine, feeding technology platform, four roll mill, hydraulic roll changing device of supporting roller, discharge technology platform, Four pyramid hydraulic coiler, general hydraulic system, AGC hydraulic system,
thin oil station, oil and gas lubrication system, process lubrication station, electronic control unit, thickness gauge, anchor bolt etc.
三技术参数
THREE.technical parameter
轧制力： 700T 传动形式： 支承辊传动 Rolling force: 700T Drive form： Supporting roller drive
进料规格： 3x500-620mm 成品规格： 0.25x500-620mm Feeding standard:3x500-620mm Finished product specifications:0.25x500-620mm
轧制速度： 230m/min Rolling speed:230m/min
工作辊规格： φ150x700 Work roll specifications: φ150x700
支承辊规格： φ600x650 Supporting roller size:φ600x650
主电机： Z450-42 500KW AGC压下油缸： φ480x70 Main motor:Z450-42 500KW AGC pressure cylinder: φ480x70
主减速机 硬齿面ZLY560-2Z 十字万向轴： SWC350 Main speed reducer Hardened ZLY560-2Z Cross universal shaft:SWC350
人字齿轮箱： A=900mm，稀有自润滑 普通液压工作压力： 10Mpa Herringbone gear box:A=900mm，Rare self lubrication General hydraulic pressure: 10Mpa
卷取机： 液压四棱锥 AGC液压工作压力： 18Mpa-21Mpa Coiling machine: Hydraulic four pyramid AGC hydraulic pressure:18Mpa-21Mpa
卷取张力： 10T 轧制方式： 可逆 Coiling tension: 10T Rolling way:reversible
卷重： 8T 电控： 控制器西门子6R80，PLC西门子 Volume weight: 8T Electric control: Controller SIEMENS 6R80, PLC SIEMENS
卷取减速机： 自制ZQ100 Winding speed reducer:Homemade ZQ100
卷取电机： Z4-315-42 250KW 2台 Winding motor:Z4-315-42 250KW two
