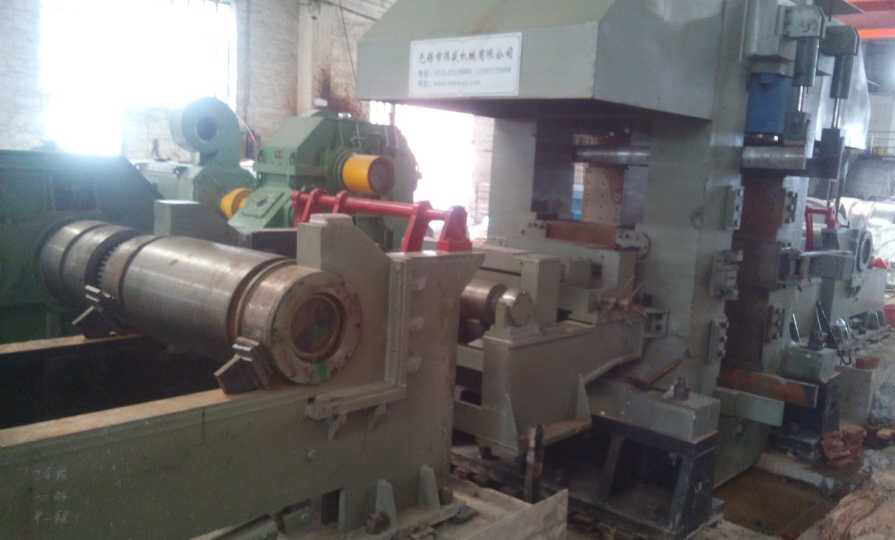

φ160/φ145/φ1050x1450八辊AGC可逆冷轧机
φ160/φ145/φ1050x1450八辊AGC可逆冷轧机(不锈钢)
φ160/φ145/φ1050x1450eight roll AGC reversing cold mill(stainless steel )
一用途
ONE.use
本机型为支承辊传动，机架刚度大，辊系采用轧机专用FCD轴承，适用于宽板精轧，是轧制不锈钢的常用设备。
The machine is a supposing rod transmisiion, Rack stiffness,FCD bearing special for rolling mill, Suitable for Wide Plate finishing mill , it is a common device for rolling stainless steel
二设备组成及结构特点
TWO. Equipment composition and structure characteristics
本机为八辊冷轧机，由压下装置、机架装置、辊系部分、平衡装置、主传动、万向轴托架、换辊装置等组成。其主要功能是轧制带材，满足一定厚度。设备组成，由进料工艺平台、八辊轧机、支承辊液压换辊装置、出料工艺平台、龙门架实心卷取机、普通液压系统、AGC液压系统、稀油站、油气润滑系统、工艺润滑站、电控、测厚仪、机组地脚螺栓等组成。
This machine is eight roller cold rolling mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive,universal shaft bracket and a roll changing device.
Its main function is to roll strip, to meet certain thickness. Device composition,by hydraulic up scaling machine, feeding technology platform, eight roll mill, hydraulic roll changing device of supporting roller, discharge technology platform, Longmen frame solid coiling machine , general hydraulic system, AGC hydraulic system,
thin oil station, oil and gas lubrication system, process lubrication station, electronic control unit, thickness gauge, anchor bolt etc.
三技术参数
THREE.Technical parameter
轧制力： 1600T 传动形式： 支承辊传动 Rolling force: 1600T Drive form： Supporting roller drive
进料规格： 3-4x1250mm 成品规格： 0.25-0.4x1250mm Feeding standard:3-4x1250mm Finished product specifications:0.25-0.4x1250mm
机架端面： 600x650 rack end face:600x650
轧制速度： 350m/min Rolling speed:350m/min
工作辊规格： φ160x1450 Work roll specifications: φ160x1450
中间辊： φ145x1450 Intermediate roll specifications: φ145x1450
支承辊规格： φ1050x1380 Supporting roller size:φ1050x1380
主电机： Z710-4A 1237KW 2台 AGC压下油缸： φ720/φ620x70
Main motor:Z710-4A 1237KW two AGC pressure cylinder: φ720/φ620x70
齿轮箱： 硬齿面加强型组合齿轮箱 十字万向轴： SWC620
Gear box: Hard surface strengthening combined gear box Cross universal shaft:SWC620
卷取机： 龙门架实心卷取机φ600x1450 普通液压工作压力： 10Mpa
Coiling machine:Longmen solid body coiling machineφ600x1450 General hydraulic pressure: 10Mpa
卷取张力： 35T AGC液压工作压力： 18Mpa-21Mpa
Coiling tension: 35T AGC hydraulic pressure:18Mpa-21Mpa
卷重： 25T 轧制方式： 可逆 Volume weight: 25T Rolling way:reversible
卷取减速机： 硬齿面ZLY900 电控： 控制器西门子6R80，PLC西门子
Winding speed reducer:Hardened surfaceZLY900 Electric control:Controller SIEMENS 6R80, PLC SIEMENS
卷取电机： Z560-4B 800KW 4台 Winding motor:Z560-4B 800KW two
