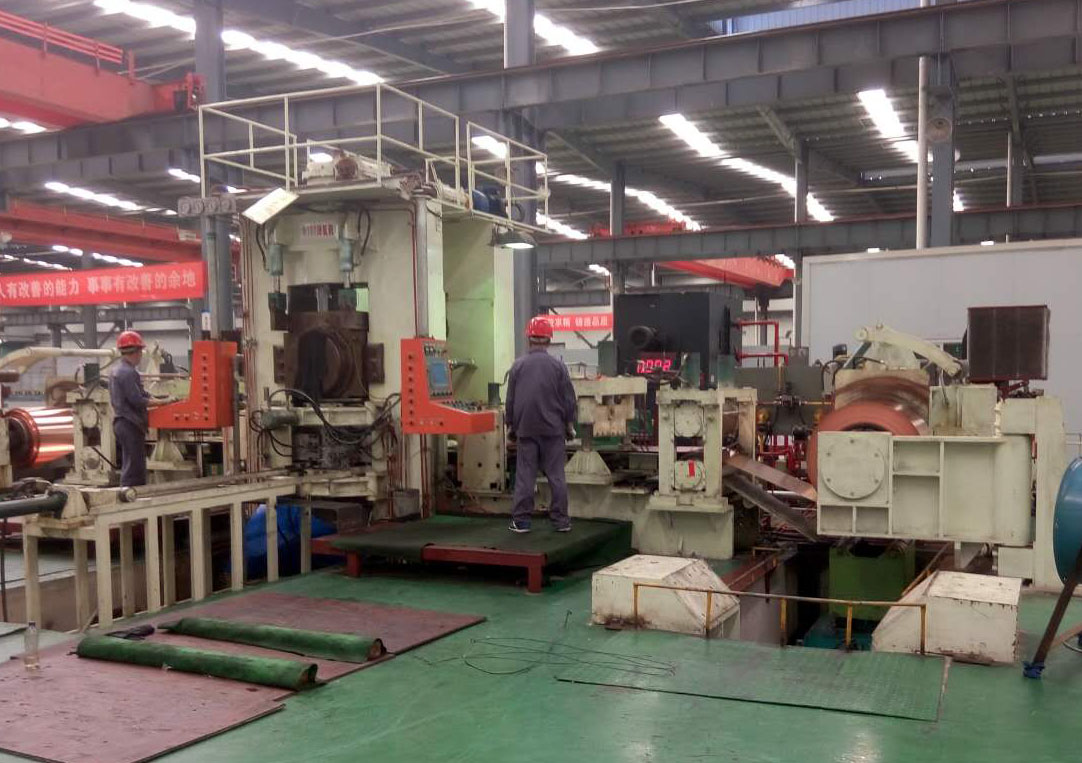

φ180/φ250/φ650x750六辊AGC可逆冷轧机
φ180/φ250/φ650x750六辊AGC可逆冷轧机（铜板带）
φ180/φ250/φ650x750six roll AGC reversing cold mill(copper belt)
一用途
ONE.use
本机型为中间辊传动，机架刚度大，辊系采用轧机专用FCD轴承，适用于宽板精轧，是轧制铜及铜合金的常用设备。
The machine is for intermediate and transmission, frame stiffness, and Department of the special rolling mill for FCD bearing and is suitable for wide plate finishing mill, is the common equipment for rolling of copper and copper alloy.
二设备组成及结构特点
TWO. Equipment composition and structure characteristics
本机为六辊精轧机，由压上装置、机架装置、辊系部分、平衡装置、主传动、换辊装置等组成。其主要功能是轧制带材，满足一定厚度。设备组成，机前机后装置、六辊轧机、液压四棱锥卷取机、支撑辊液压换辊装置、普通液压系统、AGC液压系统、稀油站、工艺润滑站、电控、测厚仪、机组地脚螺栓等组成。
This machine is six-high finishing rolling mill , which is composed of a press up device, a machine frame, a roller system, a balance device, a main drive, a roll changing device. Its main function is to roll strip, to meet certain thickness. Device composition,by machine front and back device,six roll mill, four pyramid hydraulic coiler,hydraulic roll changing device of supporting roller,general hydraulic system, AGC hydraulic system, thin oil station, oil and gas lubrication system, process lubrication station, electronic control unit, thickness gauge, anchor bolt etc.
三技术参数
THREE.technical parameter
轧制力： 700T 传动形式： 中间辊传动 Rolling force: 700T Drive form： Intermediate roller drive
进料规格： 2x650mm 成品规格： 0.1x650mm Feeding standard:2x650mm Finished product specifications:0.1x650mm
机架端面： 420x520 rack end face:420x520
轧制速度： 420m/min Rolling speed:420m/min
工作辊规格： φ180x750 Work roll specifications: φ180x750
中间辊规格： φ250x750 Intermediate roll specifications: φ250x750
支撑辊规格： φ650x700 Supporting roller size:φ650x700
主电机： Z710-3B, 1150KW AGC压下油缸： φ520x70 Main motor:Z710-3B 1150KW AGC pressure cylinder: φ520x70
主减速机： 硬齿面ZDY450-2Z 十字万向轴： SWC265 Main speed reducer Hardened ZDY450-2Z Cross universal shaft:SWC265
人字齿轮箱： A=600mm，稀有自润滑 AGC液压工作压力： 18Mpa-21Mpa Herringbone gear box:A=600mm，Rare self lubrication General hydraulic pressure: 10Mpa
卷取机： 液压四棱锥 普通液压工作压力： 10Mpa Coiling machine: Hydraulic four pyramid AGC hydraulic pressure:18Mpa-21Mpa
卷取张力： 5T Coiling tension: 5T Rolling way:reversible
卷重： 10T 轧制方式： 可逆 Volume weight:10T Electric control:Controller SIEMENS 6R80, PLC SIEMENS
卷取减速机： 硬齿面减速机 电控： 控制器西门子6R80，PLC西门子 Winding speed reducer:Hardened reducer
卷取电机： Z4-400-41 350KW 2台 Winding motor:Z4-400-41 350KW two
