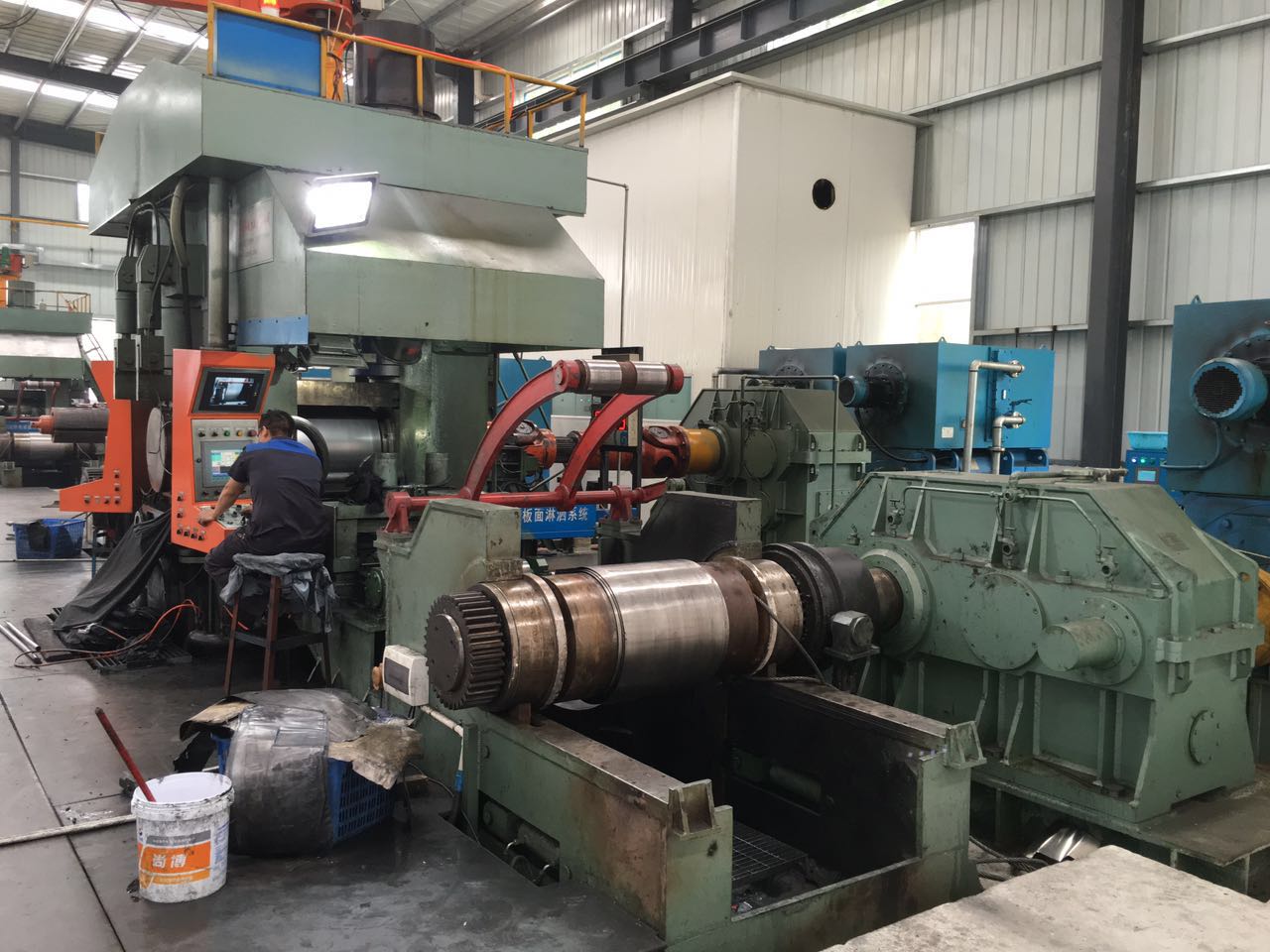

φ160/φ650x750四辊AGC可逆冷轧机
φ160/φ650x750四辊AGC可逆冷轧机(不锈钢)
φ160/φ650x750four roll AGC reversing cold mill(stainless steel )
一用途
ONE.use
本机型为支承辊传动，机架刚度大，辊系采用轧机专用FCD轴承，适用于宽板粗轧及精轧，是轧制不锈钢的常用设备。
The machine is a supposing rod transmisiion, Rack stiffness,FCD bearing special for rolling mill, Suitable for Wide Plate Roughing and finishing mill, it is a common device for rolling stainless steel
二设备组成及结构特点
TWO. Equipment composition and structure characteristics
本机为四辊冷轧机，由压下装置、机架装置、辊系部分、平衡装置、主传动、万向轴托架、换辊装置等组成。其主要功能是轧制带材，满足一定厚度。设备组成，由液压涨缩放卷机、进料工艺平台、四辊轧机、支承辊液压换辊装置、出料工艺平台、龙门架实心卷取机、普通液压系统、AGC液压系统、稀油站、油气润滑系统、工艺润滑站、电控、测厚仪、机组地脚螺栓等组成。
This machine is four roller cold rolling mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive,universal shaft bracket and a roll changing device.
Its main function is to roll strip, to meet certain thickness. Device composition,by hydraulic up scaling machine, feeding technology platform, four roll mill, hydraulic roll changing device of supporting roller, discharge technology platform, Longmen frame solid coiling machine , general hydraulic system, AGC hydraulic system,
thin oil station, oil and gas lubrication system, process lubrication station, electronic control unit, thickness gauge, anchor bolt etc.
三技术参数
THREE. Technical parameter
轧制力： 900T 传动形式： 支承辊传动 Rolling force: 900T Drive form： Supporting roller drive
进料规格： 3x500-650mm 成品规格： 0.25x500-650mm Feeding standard:3x500-650mm Finished product specifications:0.25x500-650mm
机架端面： 420x480 rack end face:420x480
轧制速度： 230m/min Rolling speed:230m/min
工作辊规格： φ160x780 Work roll specifications: φ160x780
支承辊规格： φ650x750 Supporting roller size:φ650x750
主电机： Z450-42 500KW 2台 AGC压下油缸： φ600x70 Main motor:Z450-42 500KW two AGC pressure cylinder: φ600x70
齿轮箱： 硬齿面加强型组合齿轮箱 十字万向轴： SWC390 Gear box: Hard surface strengthening combined gear box Cross universal shaft:SWC390
卷取机： 龙门架实心卷取机φ500x750 普通液压工作压力： 10Mpa Coiling machine:Longmen solid body coiling machineφ500x750 Rare self lubrication General hydraulic pressure: 10Mpa
卷取张力： 10T AGC液压工作压力： 18Mpa-21Mpa Coiling tension: 10T AGC hydraulic pressure:18Mpa-21Mpa
卷重： 12T 轧制方式： 可逆 Volume weight: 12T Rolling way:reversible
卷取减速机： 硬齿面ZLY630 电控： 控制器西门子6R80，PLC西门子 Winding speed reducer:Hardened surfaceZLY630 Electric control:Controller SIEMENS 6R80, PLC SIEMENS
卷取电机： Z500-4A 630KW 2台 Winding motor:Z500-4A 630KW two
